PCB Connectors

Winslow's PCB Connector range is available as Single and Dual Row Female Header Sockets and Male Headers for horizontal and vertical mount in 1.27mm, 2.00mm and 2.54mm pitch available as through board or surface mount

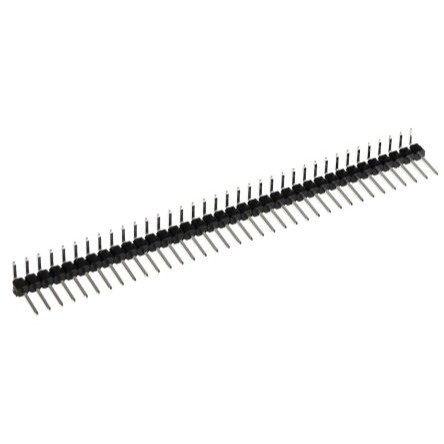

1.27mm Square Pin Headers

The W5811(xx)SB1RC - Single Row and W5821(xx)SB1RC - Dual Row Series headers use a gold plated phosphor bronze pin.

Moulding material is 30% GF Nylon rated to UL 94 V-0. The (xx) in the part number related to the number of pins required. Headers are available up to 32 pins for the single row and up to 2x50 pin for double row. Features include a serrated edge for easy cropping to desired pin length. Alternatively, pre-cut custom lengths are available.

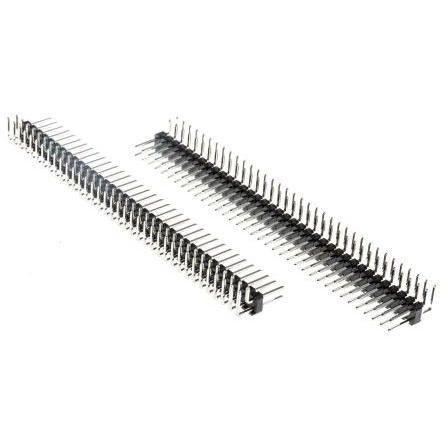

Dual Row 2.54mm Header

A range of double row unshrouded PCB pin header connectors with 0.635mm square pins and a 2.54mm pitch. These unshrouded 2.54mm PCB pin headers are available with a variety of pin heights and PCB tail lengths.

The housings of these headers is made from UL94V-0 black glass-filled PBT and the contacts are plated with pure bright Tin or Gold.

1.27mm Square Pin Header Sockets

The W534811(xx)SA - Single Row and W534821(xx)SA - Dual Row Series header sockets use a gold plated phosphor bronze contact. The moulding material is 30% GF Nylon rated to UL 94 V-0.

The (xx) in the part number relates to the number of pins required. Sockets are available up to 32 pins for the single row and up to 2x50 pin for double row.

Features include a serrated edge for easy cropping to desired pin length.

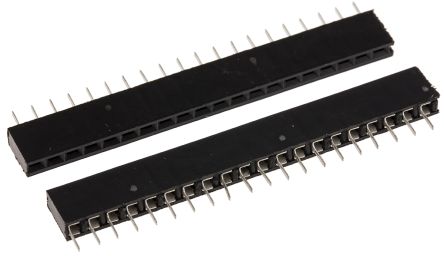

Dual Row 2.54mm Square Pin Header Sockets

These two-row socket strips have 2.54 mm pitch, solder termination and straight body orientation for easy installation. It supports through-hole mounting for vertical stacking of PCBs.

The sockets incorporate straight tri-beam tin plate contacts for precise connection. It provides a variety of connector option to cover the majority of board-to-board, bussing and programming requirements.
